D700 Molded Tilt Differential Pressure Gauss
The D700 molded tilting differential pressure gauge adopts a tilting/vertical structure and is filled with low-volatile red oil to indicate pressure values. It offers a wide measurement range and boasts higher resolution and reading accuracy at lower ranges. It can be used to measure positive pressure, negative pressure, and differential pressure values
Product Overview
The D700 molded tilting differential pressure gauge adopts a tilting/vertical structure and is filled with low-volatile red oil to indicate pressure values. It offers a wide measurement range and higher resolution and reading accuracy at lower ranges. It can be used to measure positive, negative, and differential pressure values.
The D700 molded tilting differential pressure gauge is economical in price. The housing is made of sturdy polystyrene plastic, featuring a compact and elegant structure. The molded ABS adjustment knob and zero adjustment piston facilitate on-site use by users. The leak-proof "O" ring seal enhances the sealing effect of the product. The included overflow slot can alleviate moderate overpressure. The aluminum scale panel facilitates user readings.
Technical Parameters
Product accuracy: ±3% F.S
Maximum operating temperature: 66℃
Maximum working pressure: 10 psi (70 KPa)

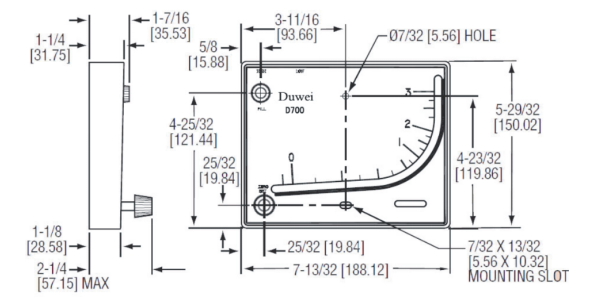

Overall dimensions (mm)
-
D700模塑傾斜式差壓計(jì).pdf
-
D700檢測(cè)報(bào)告.pdf
